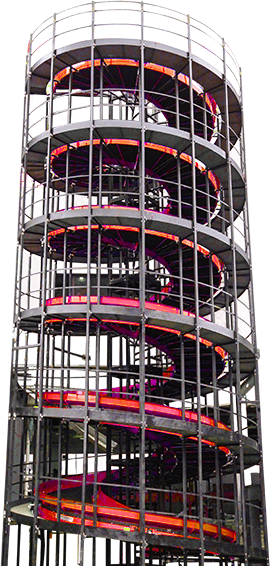

Helix Belt Conveyor
The helix belt conveyor can save a lot of space and manpower. Helix belt conveyors can carry Goods of all shapes and sizes continuously without blocking, slipping or tipping. Unpacked products such as cartons, bags, drums, etc. can be easily transported without any problem. Even the high angle of tilt can be applied, so your system design is only limited to products rather than conveying equipment.
FEATURES
Convey it up or down
• Saves floor space,Requires no metering, accumulation or indexing
• Positive drive belt system means no end roll slip,Wide selection of entry and exit combinations
• Custom designed for your particular operation,Durable all steel construction
• Fully assembled or modular construction,High conveying speeds available
• Steep angles of incline/decline available (over 30°@ centerline),Wide belt widths available

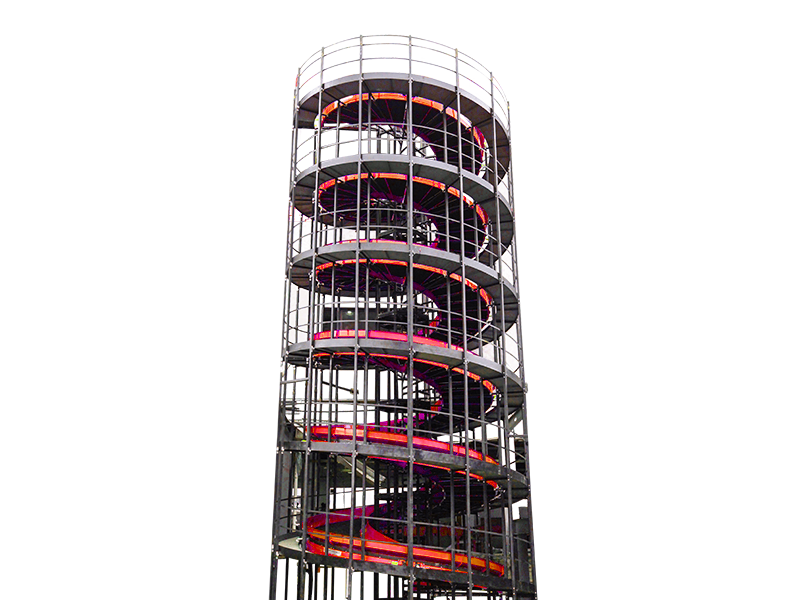

Spiral lift from Rendo
Chain-driven belt conveyors are designed for reliable operation in heavy duty applications, such as: • High speeds • High cycling • Sudden load on the belt • Harsh environments (temperature variations, contamination on or under the belt) The positive chain-driven system is not affected by the following conditions that can damage friction-driven belt conveyors (Such as: incorrect belt tension, temperature variations, contamination on or under the belt, etc.)
There is never any damaging end-roll spin caused by maladjustment. A chain-driven belt conveyor can withstand a considerable amount of neglect and abuse and still function. It is the perfect solution for a critical conveying line.
Features
Powertrain system: #50 conveyor chain with belt attachment links
Belt: 2-ply Black PVC-OP with #1A Clipper lacing.
Sideguards: Standard sideguards are rolled using 3 mm steel. Sideguards over 150 mm high have a 25 mm angled out top flange.
Paint: Epoxy powder coating in RAL colors is standard. Color matching is available.
Drives: A wide range SEW, Nord are available. You can purchase the gear motor separately.
Available Sizes: Custom-built for a particular application. We frequently builds curves with a special radius. Arcs as large as 350 degrees are readily available. Arcs as low as 5 degrees are available, but are dependent on the outside radius size.

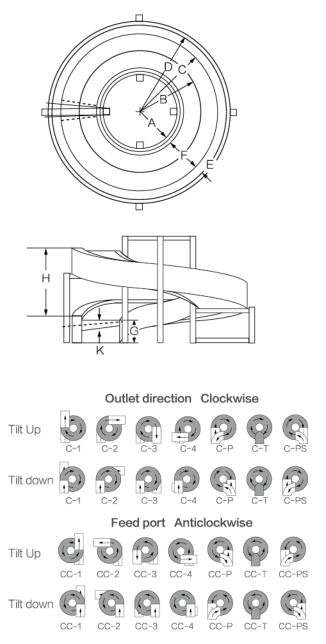

MODEL
Model | Basic Size(mm) | Inner arc radius A | Radius of center B | Conveying Width F |
Lap speed 1rpm=mm |
Max Pitch (Per360°)H |
Series“A”(Conveying width178-635;Standard Shaft Diameters=25mm) | ||||||
1022M178SP |
C-1200 D=1289 0=216 |
1022 | 1111 | 178 | 376.9 | 2642 |
717M483SP | 717 | 958.5 | 483 | 325.2 | 2642 | |
565M635SP | 565 | 882.5 | 635 | 299.4 | 2032 | |
Series“B”(Conveying width178-940;Standard Shaft Diameters=30mm) | ||||||
1322M178SP |
C=1500 D=1589 G=216 |
1322 | 1411 | 178 | 386.8 | 3251 |
1017M483SP | 1017 | 1258.5 | 483 | 345 | 3251 | |
814M686SP | 814 | 1157 | 686 | 317.2 | 2642 | |
560M940SP | 560 | 1030 | 940 | 282.4 | 2032 | |
Series“C”(Conveying width178-1245;Standard Shaft Diameters=235mm) | ||||||
2022M178SP |
02200 D=2289 G=216 |
2022 | 2111 | 178 | 399.7 | 5080 |
1616M584SP | 1616 | 1908 | 584 | 360.9 | 5080 | |
1362M838SP | 1362 | 1781 | 838 | 337.3 | 4674 | |
1200M1000SP | 1200 | 1700 | 1000 | 321.9 | 4166 | |
Series“HC”(Conveying width178-1245;Standard Shaft Diameters=35mm) | ||||||
1199HM1001SP |
C=2200 D=2289 G=305 |
1199 | 1699.5 | 1001 | 477 | 3658 |
1110HM1090SP | 1110 | 1655 | 1090 | 464.3 | 3658 | |
955HM1245SP | 955 | 1577.5 | 1245 | 442.6 | 3658 |
Model Designations A typical model is written as follows: 700M500-90, 700 is the inside radius dimension to the frame.
Specification example
M indicates it is a metric model with a 216 mm frame 500 is the conveying width between sideguards 90 is the degree of angle.
Frame height is indicated in the model designation as follows: M indicates a 216 mm high Mid-Frame model.
HM indicates a 305 mm high High-Frame model The model designation does not indicate the direction of travel.
CUSTOMIZATION AND APPLICATION
Rendo can manufacture special sizes to meet customer requirements.
Rendo chain/belt system is a simple concept, but is not easy to build. Our efforts toward perfection results in a quiet and efficient conveyor that is very reliable and easy to maintain.
High performance is only achieved by using high quality, modern materials and precision manufacturing.
We have invested heavily in automated fabrication equipment and quality manufacturing systems to achieve the highest precision and shortest production time.
