Angled Belt Conveyor
Conveyors facilitate the merging or diverging of two conveyor lines in a smooth and efficient manner The Angled belt conveyor is available in an airless version for slow and medium speeds or intermittent high speed operation and an air bar version for heavy duty applications or high sustained speeds.
FEATURES
For merging or distributing operations
• Low friction angle bar
• 30 or 45 degree angles
• Spring take-up tension system
• Whisper quiet operation
• Smooth positive angular transfer of products
• Simple belt tracking system
• Low maintenance
• Heavy duty steel construction
• Transfers small products
Superb processing and assembly technology
• High speed capability
• Low noise operation
• Easy to maintain
• Low Lifetime cost
• Practical design
• Wide conveying widths available
• Low belt tension for long component life
• Positive drive belt system means no end roll slip
• Custom designed for your specific application
Features
Belt Drive System :The conveyor belt is driven by its bottom side contacting a heavy duty lagged drive roll. Relatively low belt tension is required because there is up to 210 degrees of contact between the belt and the drive roll. A spring-loaded take-up roll automatically maintains even belt tension even through changes in loading and temperature. Contamination on the belt surface does not effect the conveyor operation because the drive roll contracts the bottom side of.
Angle Bar:Angled belt conveyor uses a polished steel bar on the angle end of the conveyor. The conveyor may be positioned with the angle bar as close as 4 mm from the adjoining conveyor. The Angled belt conveyor is available with angles of 30 and 45 degrees.
Paint: Epoxy powder coating in RAL colors is standard. Color matching is available.
Optional Air Bar System :The Air Bar System is optional for heavy duty application and sustained high speed operation up to 240 m/min. Compressed air is released through a series of holes along the face of the angle bars to both cool the bars and create an air cushion for the belt. The air bar system also includes a pressure regulator and air lines. Air consumption can vary depending upon the belt speed and load 2.8 cm3/sec @ 206 kPa to 4.2 cm3/sec @ 345 kPa.
MODEL

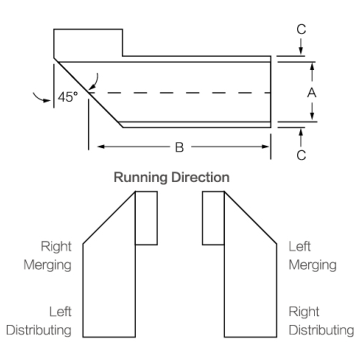

| 45°series | A | B | C | Lap speed 1 rpm=mm | Frame height |
| 330AXL788-45° | 254 | 788 | 330 | 329 | 178 |
| 686AXL965-45° | 610 | 965 | 686 | 329 | 178 |
| 737AX1042-45° | 661 | 1042 | 737 | 489 | 216 |
| 1092AX1524-45° | 1016 | 1524 | 1092 | 489 | 216 |
| 991AXH1524-45° | 915 | 1524 | 991 | 648 | 305 |
| 1600AXH2286-45° | 1524 | 2286 | 1600 | 648 | 305 |
| 30°series | A | B | C | Lap speed 1 rpm=mm | Frame height |
| 330AXL945-30° | 254 | 945 | 330 | 329 | 178 |
| 686AXL1253-30° | 610 | 1253 | 686 | 329 | 178 |
| 737AX1511-30° | 661 | 1511 | 737 | 489 | 216 |
| 1092AX1819-30° | 1016 | 1819 | 1092 | 489 | 216 |
| 991AXH1928-30° | 915 | 1928 | 991 | 648 | 305 |
| 1600AXH2456-30° | 1524 | 2456 | 1600 | 648 | 305 |

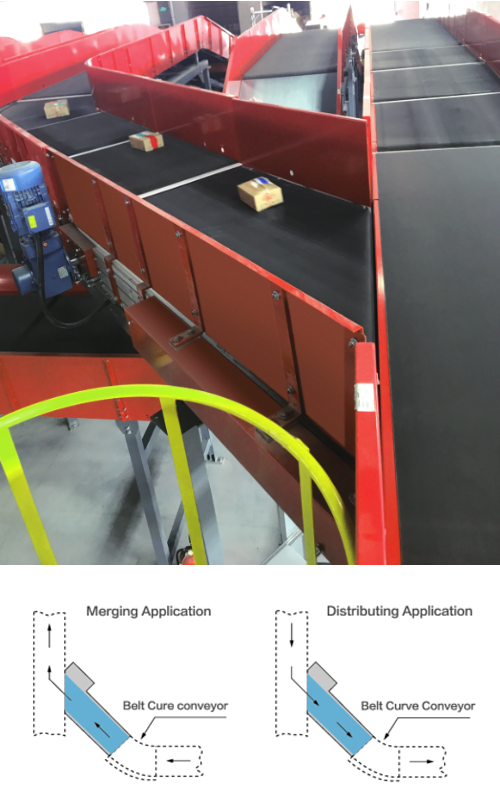

Angled belt conveyors are specifically designed for either merge or distribute operation. The number of rollers and their locations are different in these two different types of Angled belt conveyors. A merge equipment cannot be later converted to operate as a distribute equipment. Distribute Angled belt conveyors generally have a longer minimum length than a merge Angled belt conveyor. Check the factory for the minimum length of a specific conveying width and merge/distribute configuration
Model Designations
Typical model designation is written as follows:
850AXH1500-45 LHM
850 is the conveying width (between sideguards)
AX indicates that it is an airless Angled belt conveyor
H indicates that is has a High-Frame (305 mm)
1500 is the centerline length
45 is the angle of the angle bar
LH is the direction of the product after it crosses the angle bar (right-hand direction would use RH)
M indicates that the angle bar is on the exit end of the conveyor (a diverge would use D)
Frame height is indicated in the model designation as follows:
L indicates a 178 mm high Low-Frame model
H indicates a 305 mm high High-Frame model
If an “L” or “H” is not used, it is a 216 mm high Mid-Frame model.
AF indicates that it is an Angled belt conveyor with an air angle bar
ABH indicates that it is an airless Angled belt conveyor with heighten frame, meet the needs of airport baggage handling system
