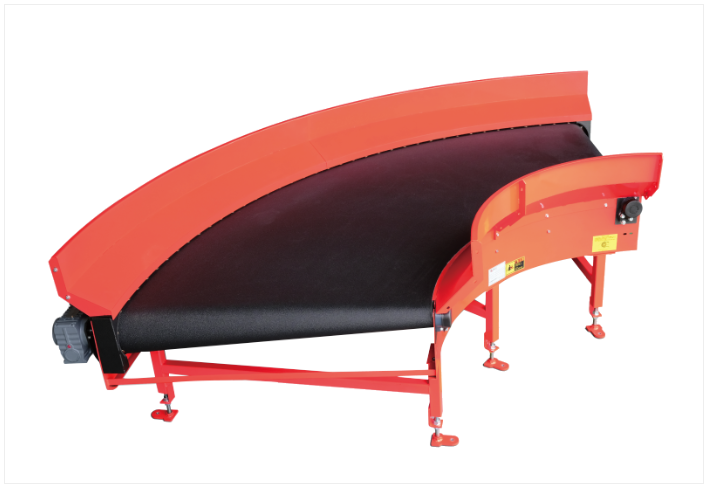

Belt Curve Conveyor
Rendo chain/belt system is a simple concept, but is not easy to build. Our efforts toward perfection results in a quiet and efficient conveyor that is very reliable and easy to maintain. High performance is only achieved by using high quality, modem materials and precision manufacturing. We have invested heavily in automated fabrication equipment and quality manufacturing systems to achieve the highest precision and no substitute for reliability.
FEATURES
No Substitute for Reliability
• Conveyor function is NOT affected by fluctuation: in the environment or loading
• Precise belt tensioning and alignment of the end pulleys NOT required
• Belt contamination does NOT cause loss of drive traction
Exquisite processing technology
• High speed capability
• Low noise operation
• Easy to maintain
• Low Lifetime cost
• Practical design
• Wide conveying widths available
• Low belt tension for long component life
• Positive drive belt system means no end roll slip
• Custom designed for your specific application
Features
Powertrain system: #50 conveyor chain with belt attachment links.
Belt: 2-ply Black PVC-OP with #1A Clipper lacing.
Sideguards: Standard sideguards are rolled using 3 mm steel. Sideguards over 150 mm high have a 25 mm angled out top flange.
Paint: Epoxy powder coating in RAL colors is standard. Color matching is available.
Drives: A wide range SEW, Nord are available. You can purchase the gear motor separately.
Available Sizes: Custom-built for a particular application. We frequently builds curves with a special radius. Arcs as large as 350 degrees are readily available. Arcs as low as 5 degrees are available, but are dependent on the outside radius size.
MODEL

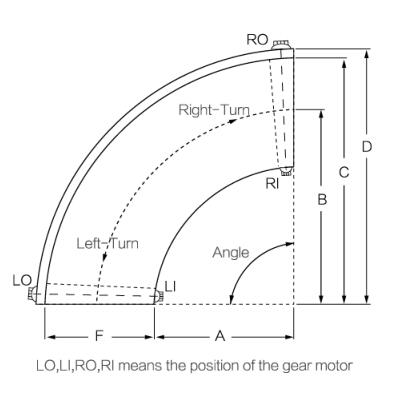

Model | Basic size(mm) | Inner arc redius A | Redius of center B | Conveying Width F | Lap speed 1RPM=MM |
Series"A"(Conveying width178-635) | |||||
1022M178 |
C=1200 D=1289 Frame height=216 Standard Shaft Diameters=25mm |
1022 | 1111 | 178 | 377 |
900M300 | 900 | 1050 | 300 | 356 | |
800M400 | 800 | 1000 | 400 | 339 | |
750M450 | 750 | 975 | 450 | 331 | |
700M500 | 700 | 950 | 500 | 322 | |
600M600 | 600 | 900 | 600 | 305 | |
565M635 | 565 | 882.5 | 635 | 299 | |
Series“B”(Conveying width178-940) | |||||
1322M178 |
C=1500 D=1589 Frame height=216 Standard Shaft Diameters=30mm |
1322 | 1411 | 178 | 387 |
1150M350 | 1150 | 1325 | 350 | 363 | |
1000M500 | 1000 | 1250 | 500 | 343 | |
850M650 | 850 | 1175 | 650 | 322 | |
750M750 | 750 | 1125 | 750 | 308 | |
675M825 | 675 | 1087.5 | 825 | 298 | |
560M940 | 560 | 1030 | 940 | 282 | |
Series“C”(Conveying width178-1000) | |||||
2022M178 |
C=2200 D=2289 Frame height=216 Standard Shaft Diameters=35mm |
2022 | 2111 | 178 | 400 |
1825M375 | 1825 | 2012.5 | 375 | 381 | |
1700M500 | 1700 | 1950 | 500 | 369 | |
1575M625 | 1575 | 1887.5 | 625 | 357 | |
1450M750 | 1450 | 1825 | 750 | 346 | |
1375M825 | 1375 | 1787.5 | 825 | 338 | |
1200M1000 | 1200 | 1700 | 1000 | 322 | |
Series“HC”(Conveying width1001-1245) | |||||
1199HM1001 |
C=2200 D=2289 Frame height=305 Standard Shaft Diameters=35mm |
1199 | 1699.5 | 1001 | 477 |
1120HM1080 | 1120 | 1660 | 1080 | 466 | |
1070HM1130 | 1070 | 1635 | 1130 | 459 | |
1000HM1200 | 1000 | 1600 | 1200 | 449 | |
955HM1245 | 955 | 1577.5 | 1245 | 444 |
Model Designations A typical model is written as follows: 700M500-90, 700 is the inside radius dimension to the frame.
Specification example
M indicates it is a metric model with a 216 mm frame 500 is the conveying width between sideguards 90 is the degree of angle.
Frame height is indicated in the model designation as follows: M indicates a 216 mm high Mid-Frame model.
HM indicates a 305 mm high High-Frame model The model designation does not indicate the direction of travel.

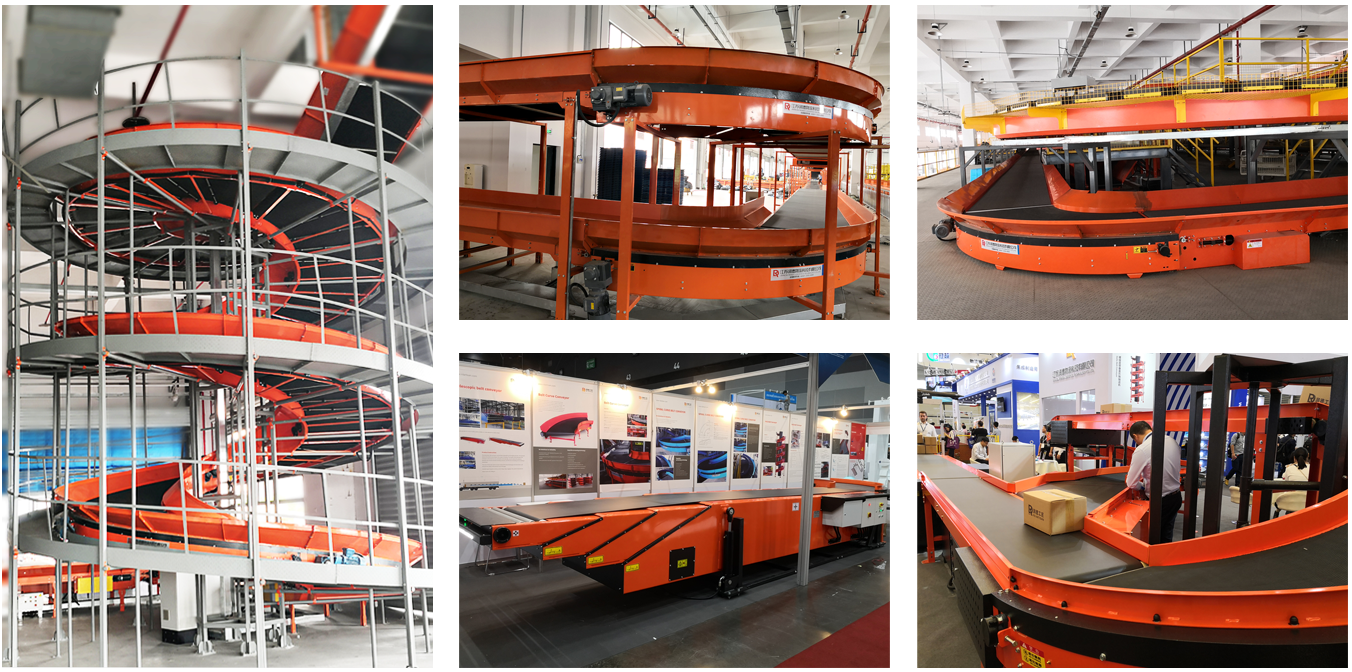

CUSTOMIZATION AND APPLICATION
Rendo can manufacture special sizes to meet customer requirements. Rendo turning belt curve conveyor can be made up to 350 degrees.
Rendo chain/belt system is a simple concept, but is not easy to build. Our efforts toward perfection results in a quiet and efficient conveyor that is very reliable and easy to maintain.
High performance is only achieved by using high quality, modern materials and precision manufacturing.
We have invested heavily in automated fabrication equipment and quality manufacturing systems to achieve the highest precision and shortest production time.
